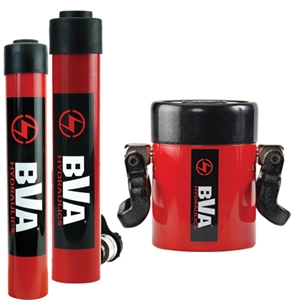

BVA Hydraulics General Purpose Single Acting Cylinders
General Purpose Single Acting Cylinders

- Collar threads and base mounting holes for fixturing

- Hard chrome plated piston rod protects against corrosion and damage

- Polyurethane U-Cup seals provide a sure seal and long life

- Solid one pieee alloy steel body

- One piece aluminum alloy bearing protects against cylinder wall damage

- CH38F high flow coupler with dust cap is standard on MOST cylinders
General Purpose Single Acting Cylinders Spec Sheet
Entire BVA Hydraulics Catalog
Items:

H0203
2 Ton / 3" Stroke

H0500
5 Ton / 0.63" Stroke

H0501
5 Ton / 1" Stroke

H0503
5 Ton / 3" Stroke

H0505
5 Ton / 5" Stroke

H0507
5 Ton / 7" Stroke

H0509
5 Ton / 9" Stroke

H1001
10 Ton / 1" Stroke

H1002
10 Ton / 2.01" Stroke

H1004
10 Ton / 4" Stroke

H1006
10 Ton / 6" Stroke

H1008
10 Ton / 8" Stroke

H1010
10 Ton / 10" Stroke

H1012
10 Ton / 12" Stroke

H1014
10 Ton / 14" Stroke

H1501
15 Ton / 1" Stroke

H1502
15 Ton / 2" Stroke

H1504
15 Ton / 4" Stroke

H1506
15 Ton / 6" Stroke

H1508
15 Ton / 8" Stroke

H1510
15 Ton / 10" Stroke

H1512
15 Ton / 12" Stroke

H1514
15 Ton / 14" Stroke

H2501
25 Ton / 1" Stroke

H2502
25 Ton / 2" Stroke

H2504
25 Ton / 4" Stroke

H2506
25 Ton / 6" Stroke

H2508
25 Ton / 8" Stroke

H2510
25 Ton / 10" Stroke

H2512
25 Ton / 12" Stroke

H2514
25 Ton / 14" Stroke

H3008
30 Ton / 8" Stroke

H5502
55 Ton / 2" Stroke

H5504
55 Ton / 4" Stroke

H5506
55 Ton / 6" Stroke

H5510
55 Tons / 10" Stroke

H5513
55 Ton / 13" Stroke

H7506
75 Ton / 6" Stroke

H7513
75 Ton / 13" Stroke

H10002A
100 Ton / 2" Stroke

H10006
100 Ton / 6" Stroke

H10010
100 Ton / 10" Stroke
